How Cloudflare Was Able to Support 55 Million Requests per Second With Only 15 Postgres Clusters
#32: Learn More - Awesome PostgreSQL Scalability (5 minutes)
Get the powerful template to approach system design for FREE on newsletter sign-up:
This post outlines how Cloudflare scaled to 55 million requests per second with only 15 Postgres clusters. If you want to learn more, scroll to the bottom and find the references.
Share this post & I'll send you some rewards for the referrals.
July 2009 - California, United States.
A team of entrepreneurs creates a content delivery network (CDN) to make the Internet faster and more reliable. And called it Cloudflare.
They faced various challenges in the early stages of development.
Yet their growth rate was spectacular.

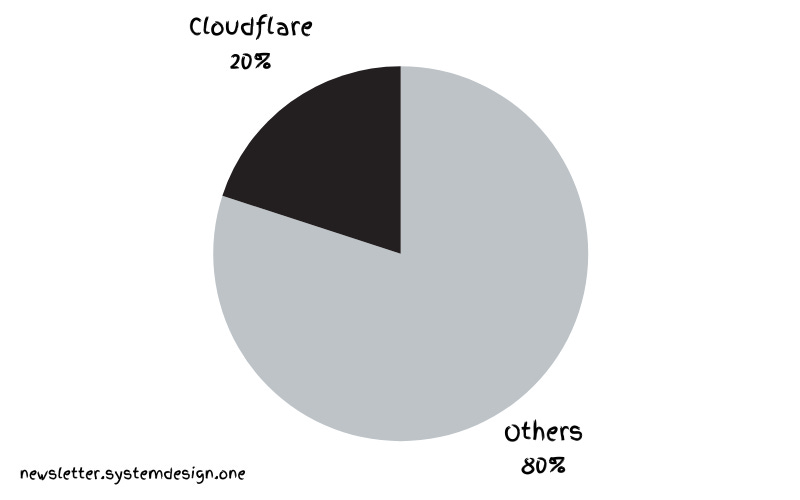

Now they serve 20% of Internet traffic at 55 million HTTP requests per second.
And they did it with only 15 PostgreSQL clusters.
A cluster is a group of database servers.
They use Postgres to store the metadata of services and handle the Online Transaction Processing (OLTP) workload.
Yet supporting many tenants having different load conditions within a cluster is a hard problem.
A tenant is an isolated data space for a specific user or group.
PostgreSQL Scalability
Here’s how they use PostgreSQL at extreme scalability:
1. Resource Usage
Most clients compete with each other for Postgres connections.
But Postgres connections are expensive because each connection is a separate process at the operating system (OS) level.
And each tenant has a unique workload, so it's difficult to create a global throttle value.
Besides throttling misbehaving tenants manually is a huge effort.
A single tenant might issue an expensive query. Thus they might starve the neighboring tenants and block them.
Also a query is difficult to isolate once it reaches the database server.
So they use PgBouncer as a connection pooler in front of Postgres.
PgBouncer acts as a TCP proxy that holds a pool of connections to Postgres.
A tenant connects to the PgBouncer instead of Postgres directly. Thus it limits the number of Postgres connections to prevent connection starvation.
Also constant opening and closing of database connections are expensive. PgBouncer avoids it through persistent connections.
Besides they use PgBouncer to throttle tenants issuing expensive queries at runtime.
2. Thundering Herd Problem
Thundering herd occurs when many clients query a server concurrently. It degrades database performance.
The state of an application gets initialized when redeployed. It results in the application creating many connections to the database at once.
Thus it causes a thundering herd as tenants compete with each other for Postgres connections.
They use PgBouncer to throttle the number of Postgres connections created by a specific tenant.
3. Performance
They don't run Postgres in the cloud. Instead on bare metal servers without virtualization for high performance.

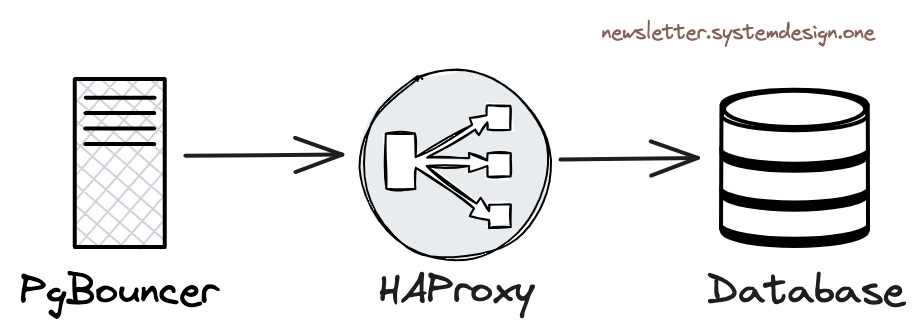

They use HAProxy as an L4 load balancer.
PgBouncer forwards queries to HAProxy.
And HAProxy load balance traffic across primary and secondary database read replicas.
4. Concurrency
The performance degrades if there are many tenants issuing concurrent queries.
So they use the TCP Vegas congestion avoidance algorithm to throttle tenants. It finds the optimal number of packets that can be sent concurrently.
The algorithm does that by sampling each tenant's transaction round trip time (RTT) to Postgres.
It then increases the connection pool size as long as the RTT doesn't degrade.
Thus it throttles traffic before resource starvation happens.
5. Ordering Queries

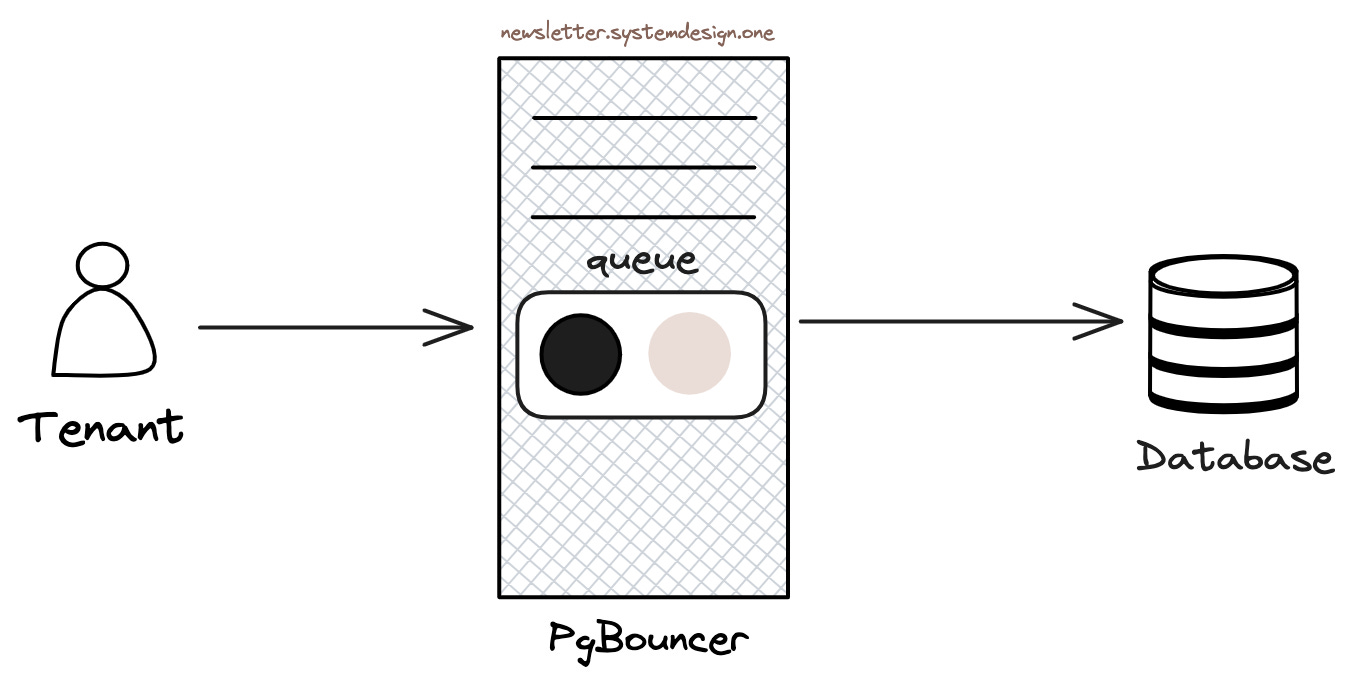

They rank queries at the PgBouncer layer using queues.
The queries get ordered in the queue based on their historical resource consumption. Put another way, the queries that need more resources get moved to the end of the queue.
Also they enable priority queueing only in peak traffic to prevent resource starvation. In other words, a query doesn't wait forever at the end of the queue in normal traffic.
This approach improves the latency of most queries.
Yet a higher latency is observed for tenants that issue expensive queries in peak traffic.
6. High Availability
They use the Stolon cluster manager for the high availability of Postgres.
Stolon replicates data across Postgres instances.
Besides Stolon elects Postgres leaders and does failover in peak traffic.
They replicate a database cluster across 2 regions for high availability.
While each cluster consists of 3 database servers within a single region.
The writes get routed to the primary region.
And data get asynchronously replicated to the secondary region. The reads are routed to the secondary region.
Besides they test connectivity between components to find network partitions proactively.
They do chaos testing for resilience. And set up extra network switches and routes to avoid network partitions.
They use the pg_rewind tool for synchronizing Postgres clusters. It replays missing writes to the primary server that came back online after a failover.
They run more than a hundred database servers including replicas.
And offer services like DNS Resolver, Firewall, and DDoS Protection.
They use a combination of OS resource management, queueing theory, congestion algorithms, and even statistics for PostgreSQL scalability.
